Also replaces Norton 501A and IG9998.
Specifications

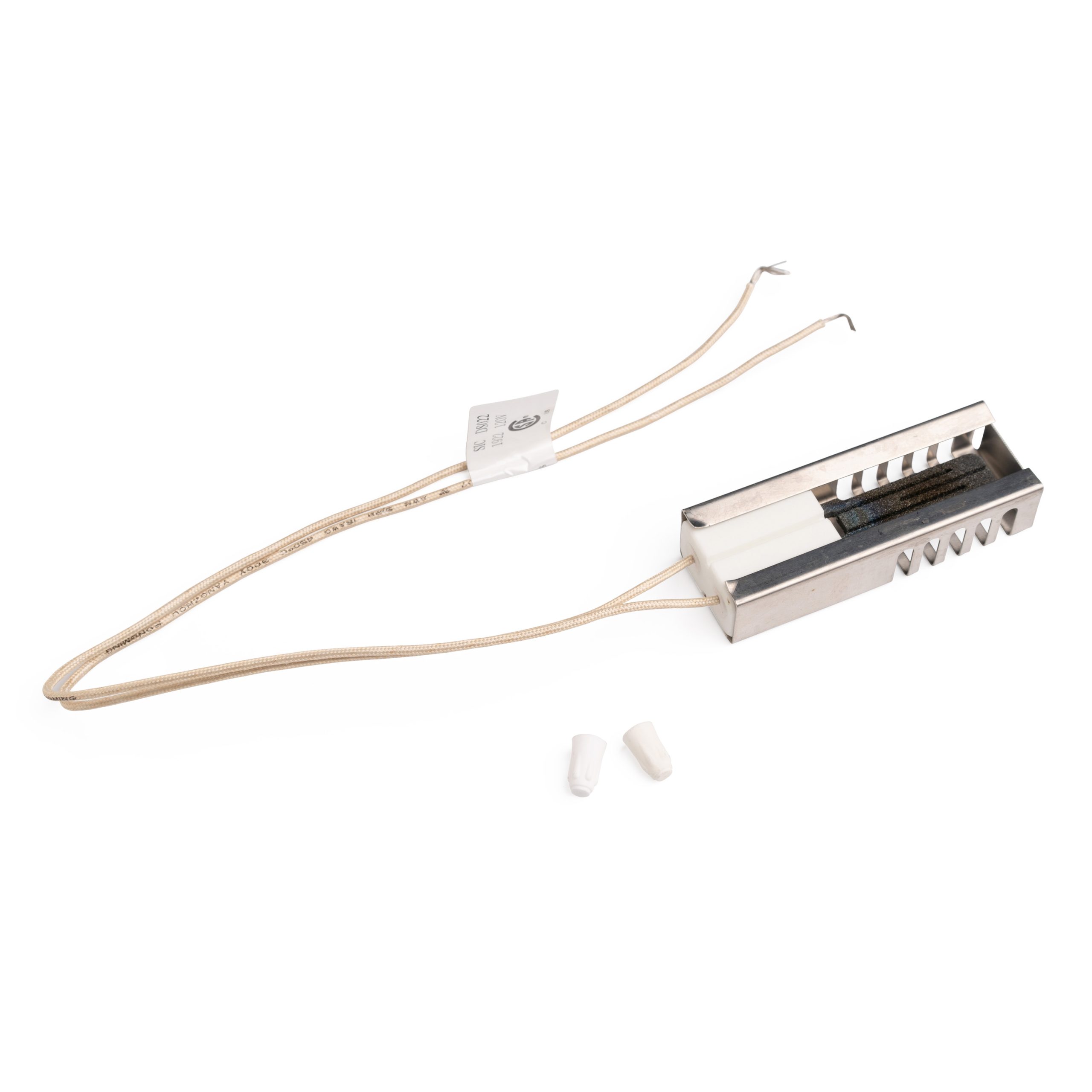

| Part number | DS022KX |
|---|---|
| Current / voltage | 3.2-3.6 A steady state @115±1VAC |
| Heat-up | ≤40 s to 1800°F (115VAC, 75°F ambient) |
| Cold resistance | cold resistance 40-450 Ω @75°F |
| Lead wires | 18 GA UL5128 (or UL5390) 450°C wire leads; leads 17.50±.25 in, stripped ends (0.5 in), no connector shown |
| Certification | CSA recognized |
| OEM / cross reference | 5303935066, 501A, IG9998 |
Replaces: 5303935066, SGR5066, 5303307577, WB13K21, MEE61841401, DG94-00520A
Installation & safety: Shut off gas and power; handle by bracket only, never the ceramic.
Returns: Returns accepted within 15 days if new and unused. See our Refund and Returns Policy.
