RA272KX Oven Igniter – Replaces GE WB2X9154 GR403

$44.95

SKU: RA272KX-691835748696 Categories: ,

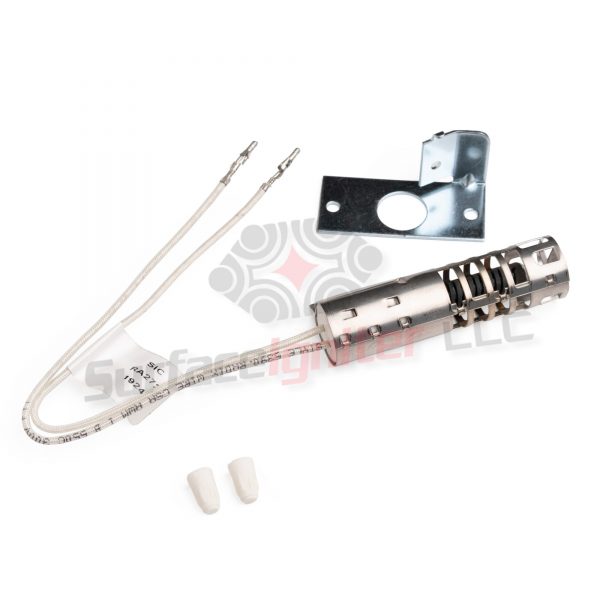

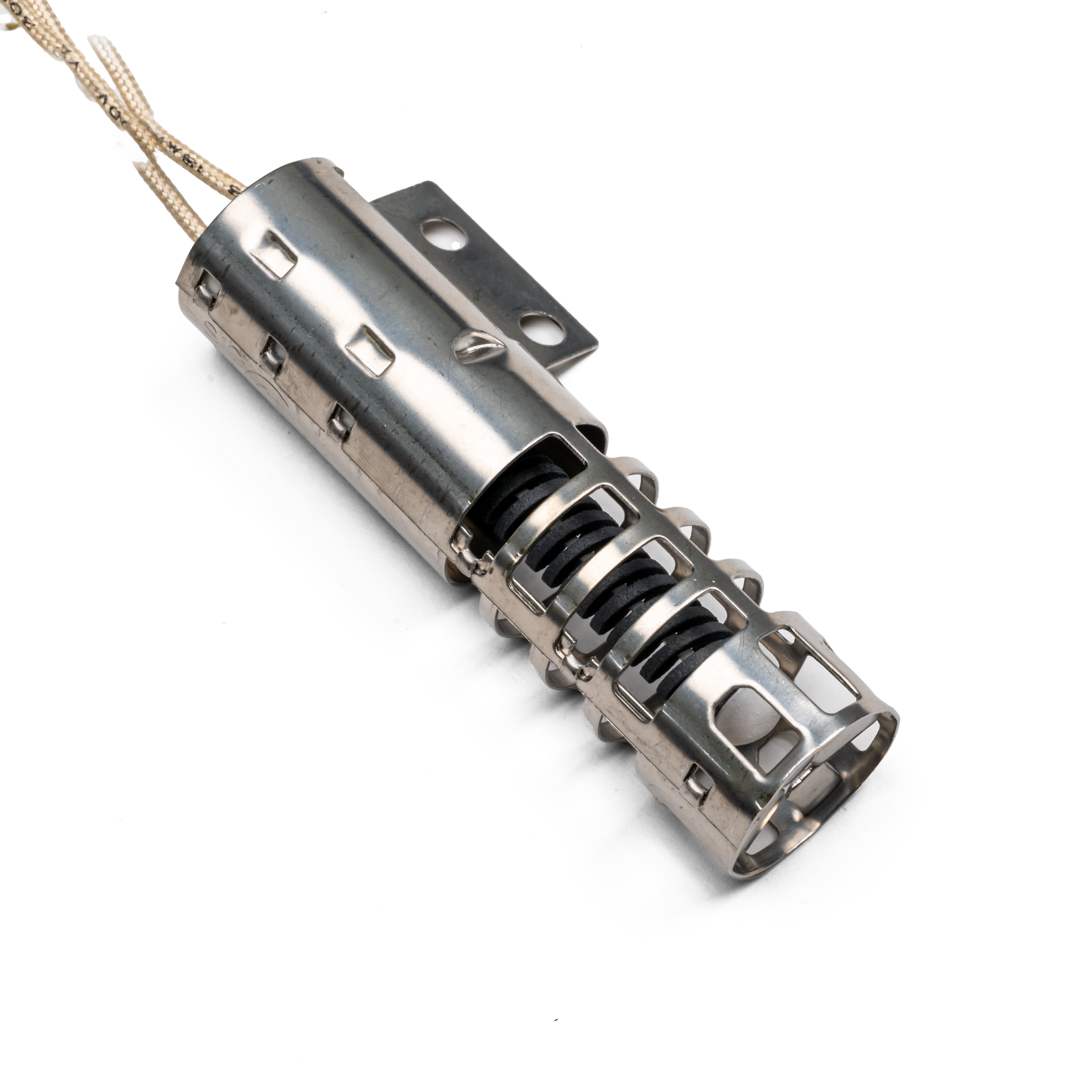

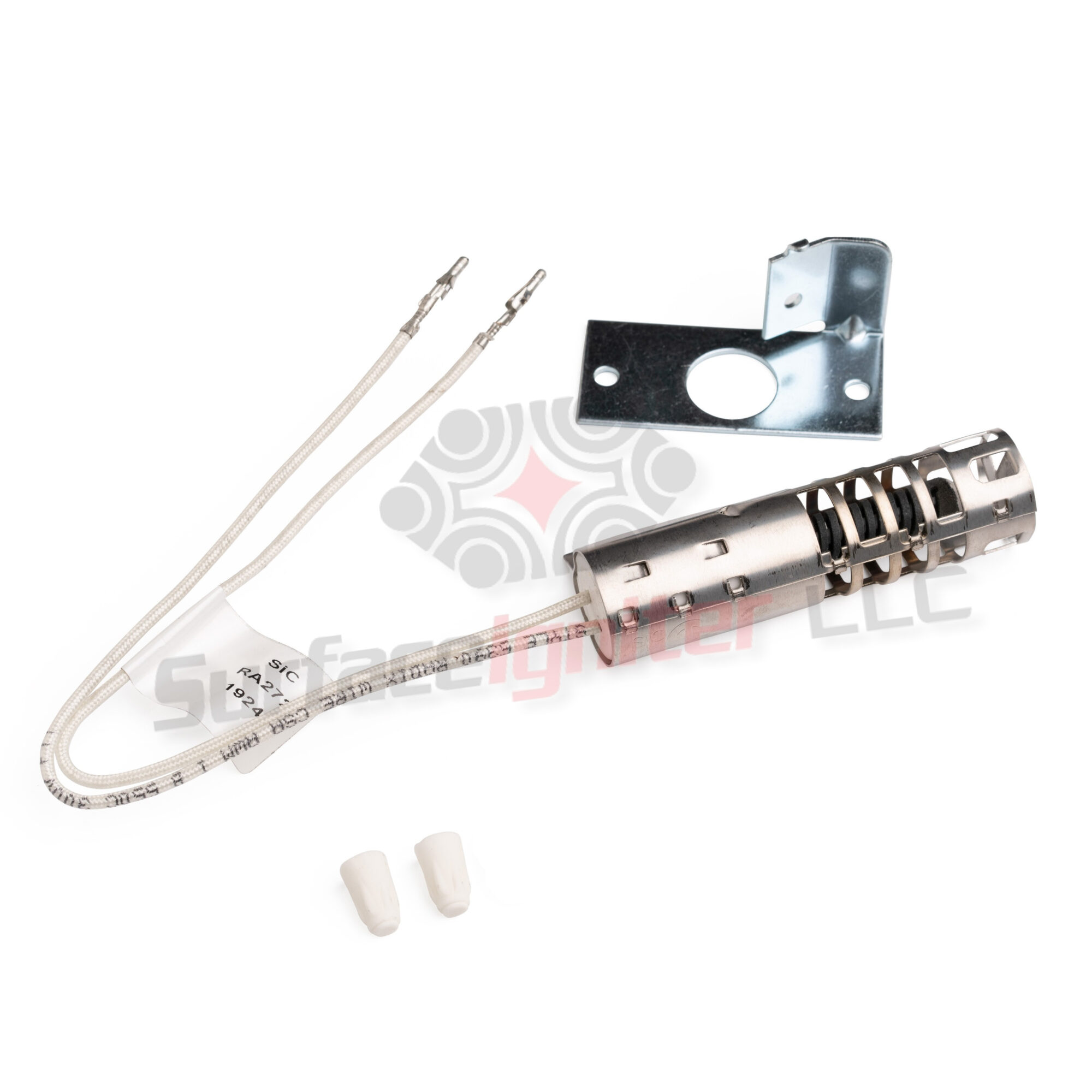

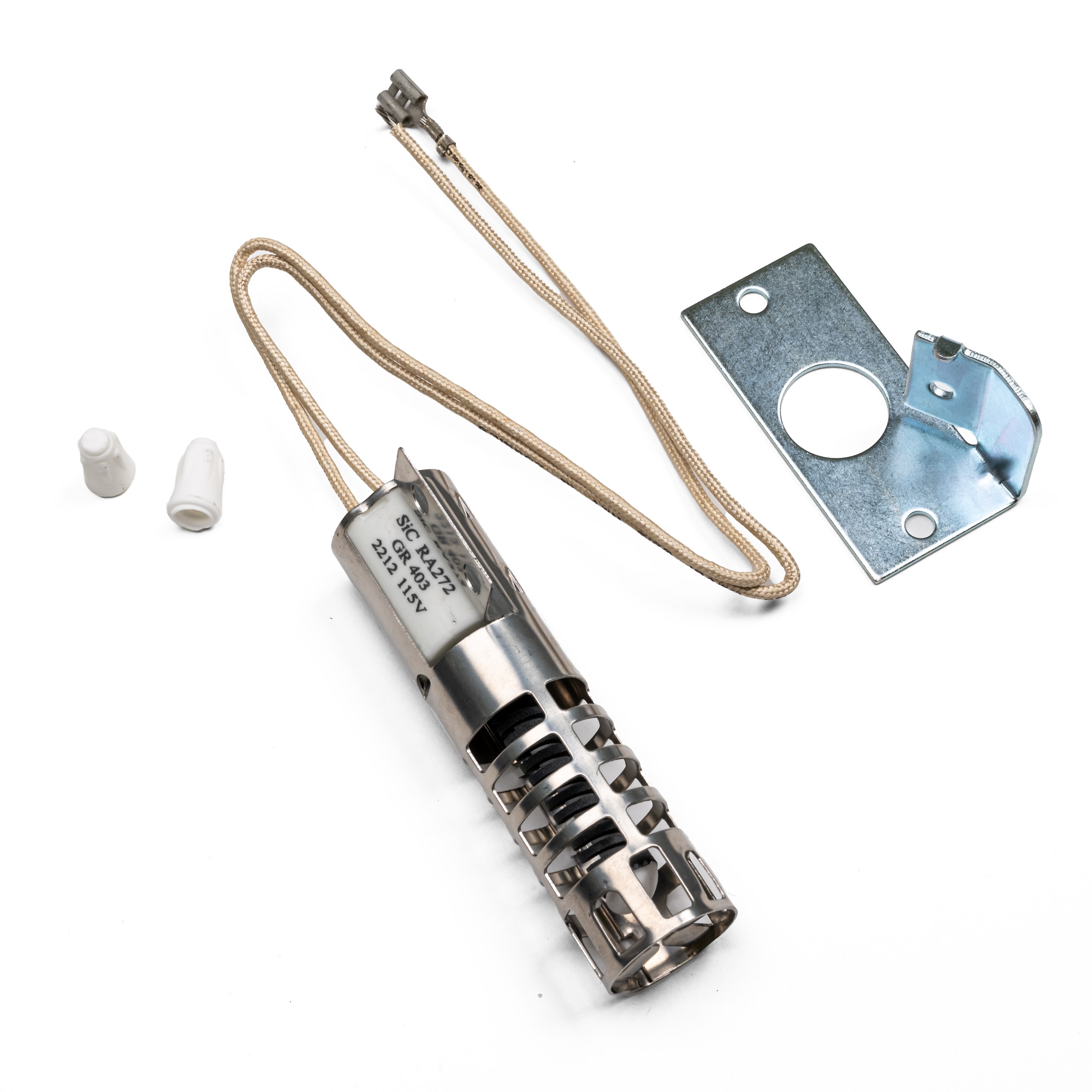

Gas range oven igniter Surface Igniter RA272KX, replaces GE WB2X9154 / GR403 applications.

Specifications

Part number RA272KX
Current / voltage 2.5–3.1 A @115 VAC; AMP receptacle
Heat-up 2000°F ≤70 s @115 VAC
Lead wires leads 12.0 in, 18 GA UL5128, 1/2 in strip
OEM / cross reference GR403, 8053999, WB2X9154

Replaces

Replaces: WB2X9154, GR403, F16-569, AR403, IGNA 001, WB3X5195, SGR403, 8053999, XL44

Installation & safety

Shut off gas and power; handle by bracket only.

Returns

Returns within 15 days, new and unused. See our refund and returns policy.
