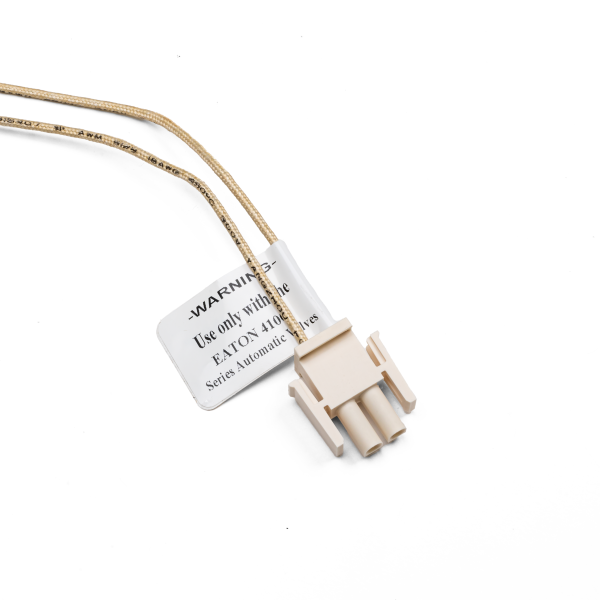

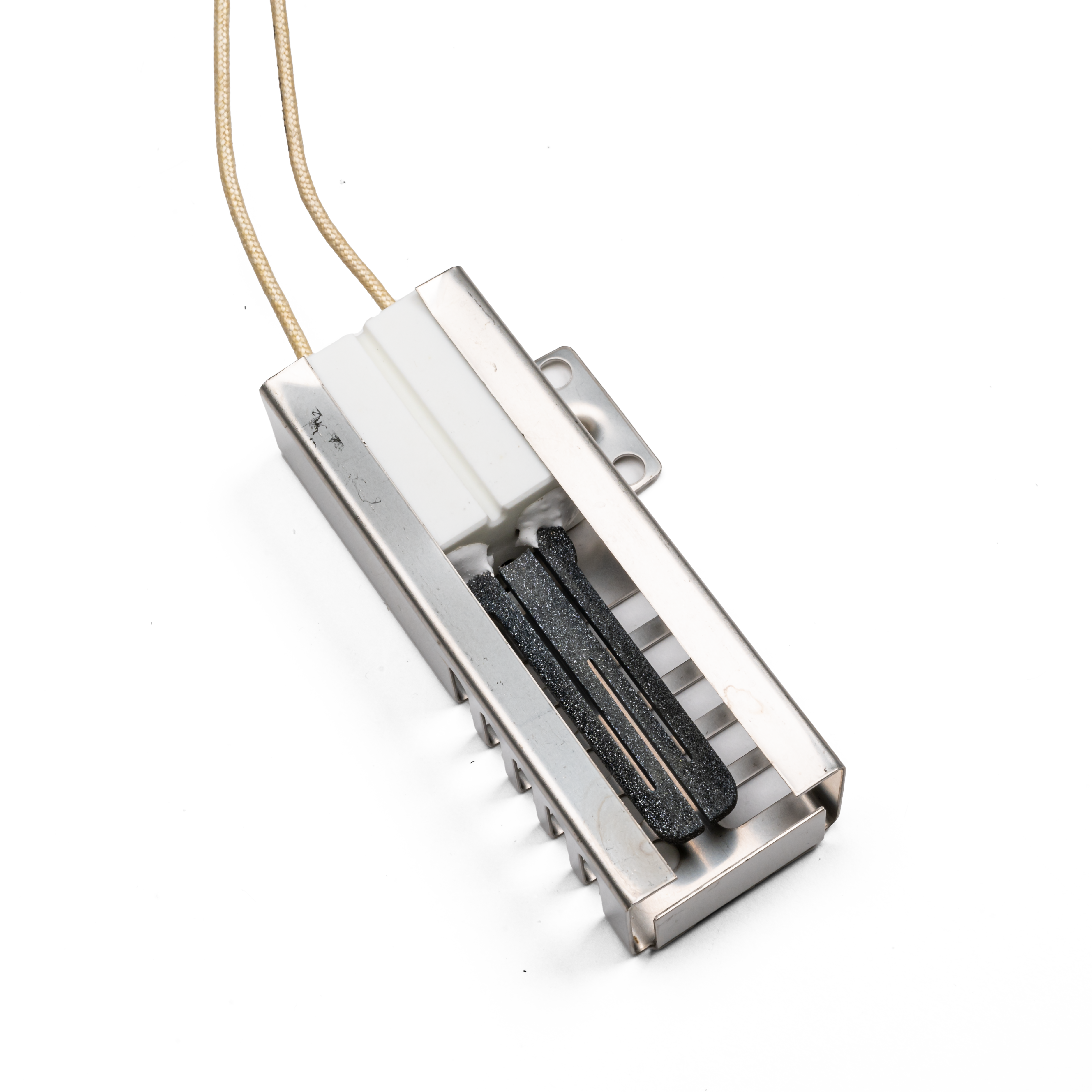

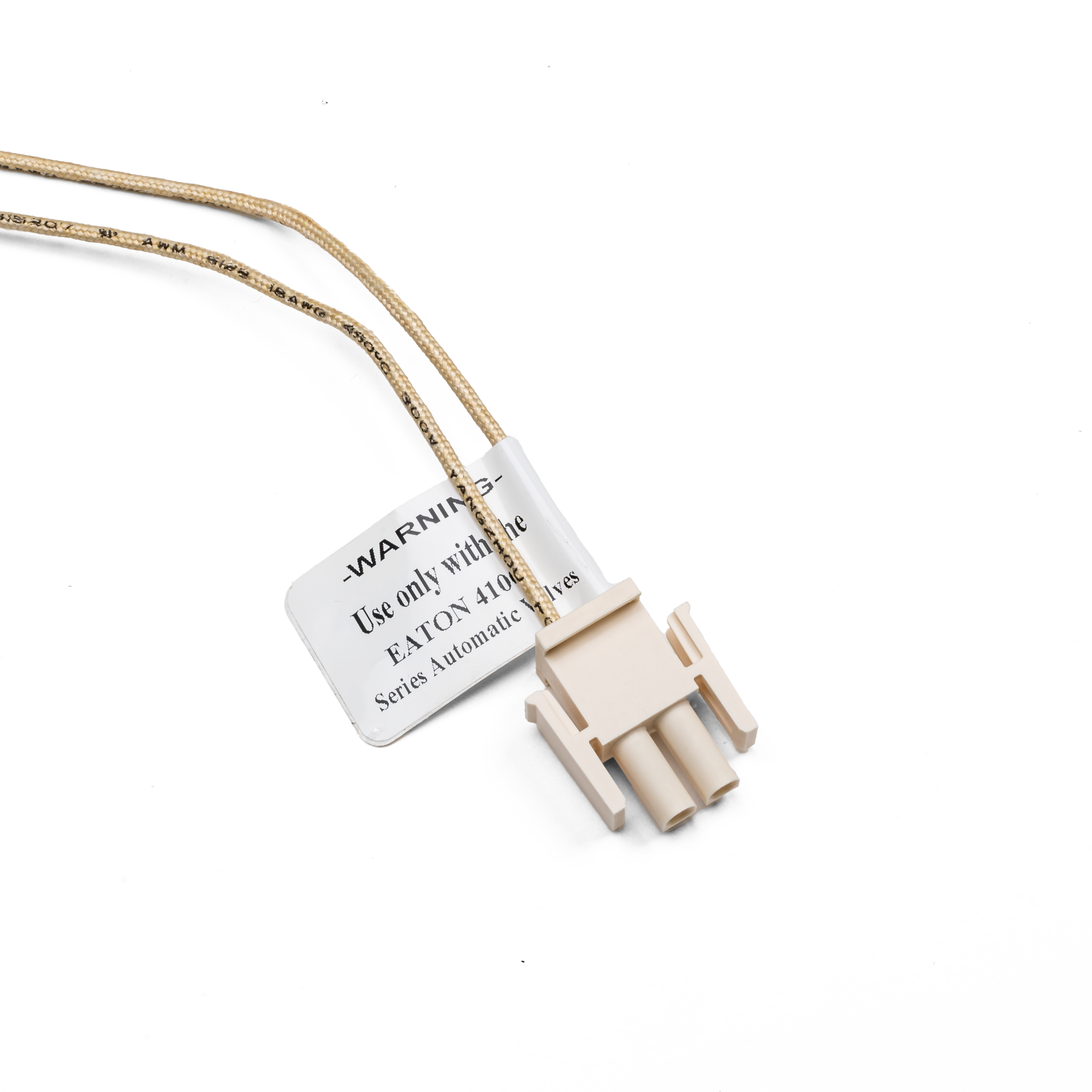

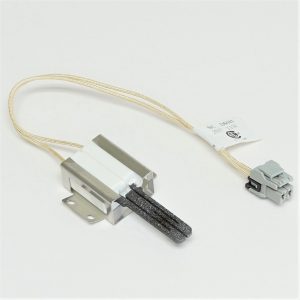

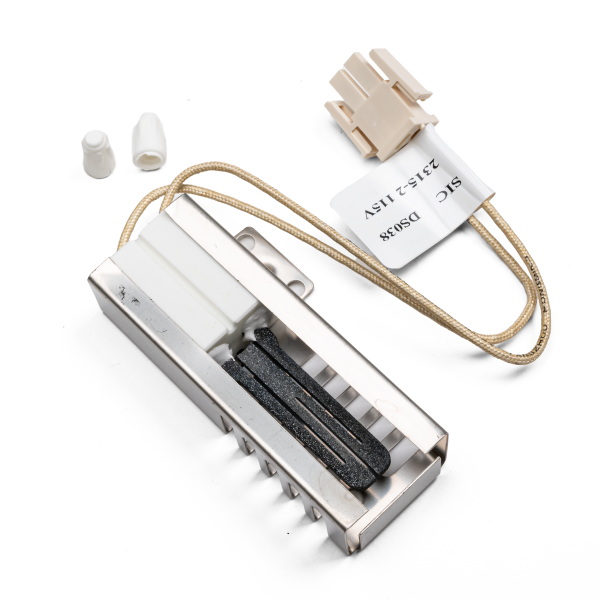

Surface Igniter DS038KX Samsung Range Replacement igniter is made of the same materials and specifications as the OEM requires. The igniter is CSA-approved RoHS and Reach Complaint; It comes with the Prop 65 Warning. The DS038KX exact replacement igniter for Samsung | DG94-00520A | DG094-01441A | 41-230 | AP5577941| PS4241428 | 2692271 41-230 | IGNA027 | When completing this repair, the connector plug might need to be removed and spliced to the range wiring using porcelain wire nuts. Before you begin this repair, disconnect the power source from the oven, and shut off the gas supply.
Manufacturer, Model Number, Description.
Samsung FX510BGS/XAA-0000 GAS RANGE
Samsung FX510BGS/XAA-0001 GAS RANGE
Samsung FX510BGS/XAA-0002 GAS RANGE
Samsung FX710BGS/XAA-0000 GAS RANGE
Samsung FX710BGS/XAA-0001 GAS RANGE
Samsung FX710BGS/XAA-0002 GAS RANGE
Samsung FX710BGS/XAC-0000 RANGE, GAS
Samsung NX583G0VBBB/AA-0000 RANGE
Samsung NX583G0VBSR/AA-0001 GAS RANGE
Samsung NX583G0VBWW/AA-0000 RANGE
Samsung NX58F5300SS/AA-0000 GAS RANGE
Samsung NX58F5500SB/AA-0000 GAS RANGE
Samsung NX58F5500SS/AA-0000 GAS RANGE
Samsung NX58F5500SW/AA-0000 GAS RANGE
Samsung NX58F5700WS/AA-0000 RANGE
Samsung NX58F5700WS/AA-0001 RANGE
Samsung NX58H5600SS/AA-0000 RANGE
Samsung NX58H5650WS/AA-0000 RANGE
Samsung NX58H9500WS/AA (0000) GAS RANGE
Samsung NX58H9950WS/AA (0000) GAS RANGE
Samsung NX58J5600SG/AA (0000) GAS RANGE
Samsung NX58J7750SG/AA (0000) GAS RANGE
Samsung NX58J7750SS/AA (0000) GAS RANGE
Samsung NX58K3310SB/AA (0000) GAS RANGE
Samsung NX58K3310SS/AA (0000) GAS RANGE
Samsung NX58K3310SW/AA (0000) GAS RANGE
Samsung NX58K7850SG/AA (0000) GAS RANGE
Samsung NX58K7850SS/AA (0000) GAS RANGE
Samsung NX58K9500WG/AA (0000) GAS RANGE
Samsung NX58K9850SG/AA (0000) GAS RANGE
Samsung NX58K9850SS/AA (0000) GAS RANGE
Samsung NX58K9852SG/AA (0000) GAS RANGE
Harold Brownell (verified owner) –
As far as reliability of the igniter, I just installed it today, and it worked. And dealing with this company was a very good experience. They were professional, knowledgeable, and willing to answer my questions. The price was right and their expedience was exceptional.
John (verified owner) –
Great customer service when I called and this igniter works great!
Full disclosure the original igniter still worked and the problem turned out to be manufacturing defect. One of the wires on the original igniter was pinched behind metal and broke causing it to stop working. I could have repaired the wire but had already ordered this one and to be honest probably better off with it that’s the junk Samsung one.
